Jedi SAS Tricks: DIY Tasks in SAS Studio

5

In my previous post, Jedi SAS Tricks - Make This a Button in Base SAS I demonstrated running a SAS program from a tool bar button in the SAS Windowing environment. The program we execute is the macro from a previous post, Jedi SAS Tricks: The DATA to DATA Step Macro. The wily Chris Hemedinger commented that he had written a blog about a custom task for this function in Enterprise Guide, which is an excellent solution for our Enterprise Guide users. Just so our SAS Studio users don't feel left out, I'm going to show you on how to make a custom SAS Studio task that runs the Data2DataStep macro for you. Because this post is a bit longer and more complex than usual, I'm going to include a link to a ZIP file containing a PDF of the instructions and a copy of the XML code for the Data2DataStep task.

SAS Studio tasks are written in XML, so are very easy to create, copy and modify. In fact, SAS Studio allows you to edit your tasks right in the browser! It's a very useful exercise to copy a few tasks and experiment with the XML to get a feel for what each section does. After poking around, I chose to start my new task by right-clicking in the Task window and choosing New Task from the pop-up menu. This creates a blank template we can use to create our task. Let’s got through the template section by section and create a task that will collect input, then execute the Data2DataStep macro for us.

The first section is the Registration section. First, note the GUID (Globally Unique Identifier). This 128-bit integer uniquely identifies each task. SAS Studio provides you a new GUID every time you copy or create a new task. OK - first we’ll edit the Name and Description tags for our task and add a Category tag to help keep out tasks organized. You can also add links to SAS documentation which might be of interest to the user, if desired. The information we enter here will appear on the INFORMATION tab of our task:

   <Registration>
      <Name>Data2DataStep</Name>
      <Description>Generates a DATA step to recreate a few observations of a data set.</Description>
      <Category>Data</Category>
      <GUID>209039f4-f7e6-4916-97d1-6637f0ba2127</GUID>
      <Procedures>DATA step</Procedures>
      <Version>3.4</Version>
      <Links>
         <Link href="http://support.sas.com/documentation/onlinedoc/sasstudio/index.html">SAS Studio User's Guide</Link>
         <Link href="https://support.sas.com/documentation/cdl/en/lestmtsref/68024/HTML/default/viewer.htm#titlepage.htm">Base SAS Statements</Link>
         <Link href="http://support.sas.com/training/studio">SAS Tutorials</Link>
      </Links>
   </Registration>

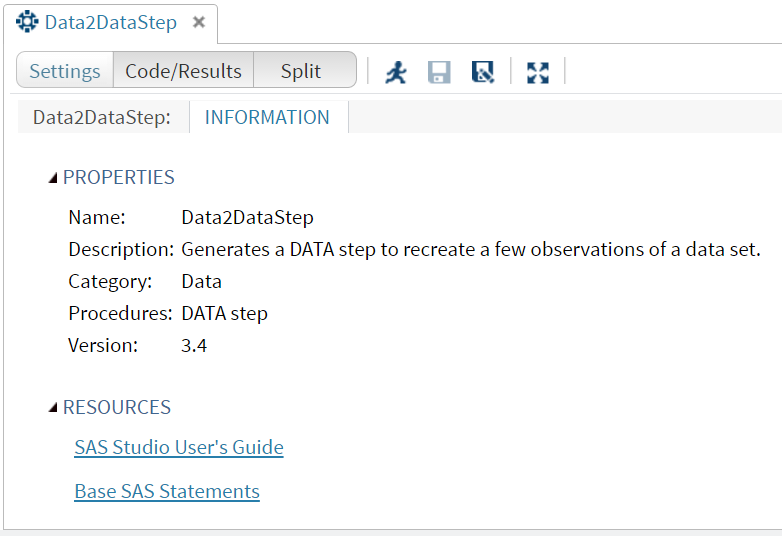

Here's what the INFORMATION tab looks like for our task:
SAS Studio Task INFO pane
Next, we’ll use the Metadata section to define the objects we will later display in the User Interface section. We’ll need the following object:

  • A DataSource object to provide a text box with a “pick list” button for choosing the data set.
  • Option objects of type String to provide labels for our controls
  • Option object of type InputText to optionally accept the name of the program file
  • Option object type NumStepper to optionally accept the number of observations to reproduce.
  •    <Metadata>
          <DataSources>
             <DataSource name="dataset">
             </DataSource>
          </DataSources>
          <Options>
             <Option inputType="string" name="dta">Input Data</Option>
             <Option inputType="string" name="opts">Options</Option>
             <Option inputType="string" name="TaskTitle">Data2DataStep:</Option>
             <Option inputType="inputtext" name="ProgramFile" indent="1" required="False" promptMessage="Enter the fully-qualifed name of the program file (Optional)">Program File:</Option>
             <Option inputType="numstepper" name="Nobs" indent="1" required="False" decimalPlaces="0" defaultValue="10" increment="1" invalidMessage="Number of observations (default is 10)" minValue="1" promptMessage="Enter an integer greater than 0 for the number of observations to be output" rangeMessage="Must be an integer greater than 0" rangeMessageKey="subsetNobsRangeKey" >Number of observations to output:</Option>
          </Options>
       </Metadata>


    Next, we will deploy the objects we’ve defined to create a User Interface (UI) for our task:
       <UI>
          <Container option="TaskTitle">
             <Group open="true" option="dta">
                <DataItem data="dataset"/>
             </Group>
             <Group open="true" option="opts">
                <OptionItem option="ProgramFile"/>
                <OptionItem option="Nobs"/>
             </Group>
          </Container>
       </UI>

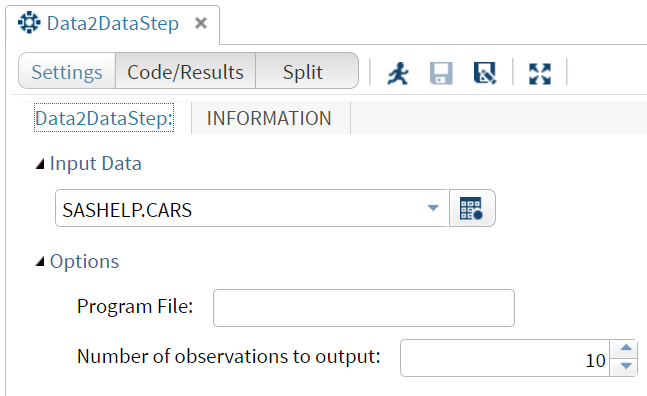

    Here's what the main tab will look like when using this Task:
    SAS Studio custom task user interface
    Lastly, we’ll need to populate the Code Template of our task so it can generate SAS code from our inputs. Values stored in objects are referenced with a $ and the object name. For example, to surface the dataset object value in our code, we will use '$dataset':
       <CodeTemplate>
       <![CDATA[
    /* Write a DATA set to re-create a few observations of a data set */
    %DATA2DATASTEP($dataset,,$ProgramFile,$Nobs)
    ]]>
       </CodeTemplate>


    Save the task, and that’s it! Now we are ready to test our task. In the SAS Studio Tasks riser bar, choose the new task (My Tasks -> Data ->Data2Datastep). Fill in the form, and watch the code dynamically build in the Code/Results tab!

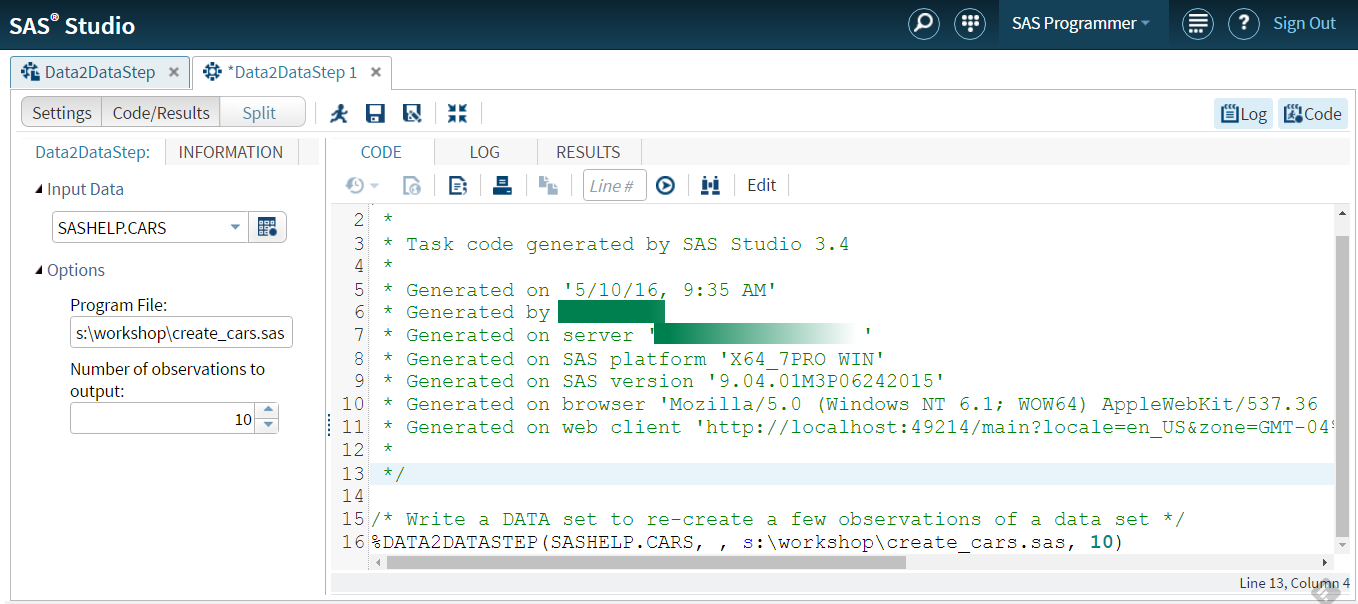

    SAS Studio task with options filled in generating code

    Submit the generated code and verify the program file you desired was indeed created.

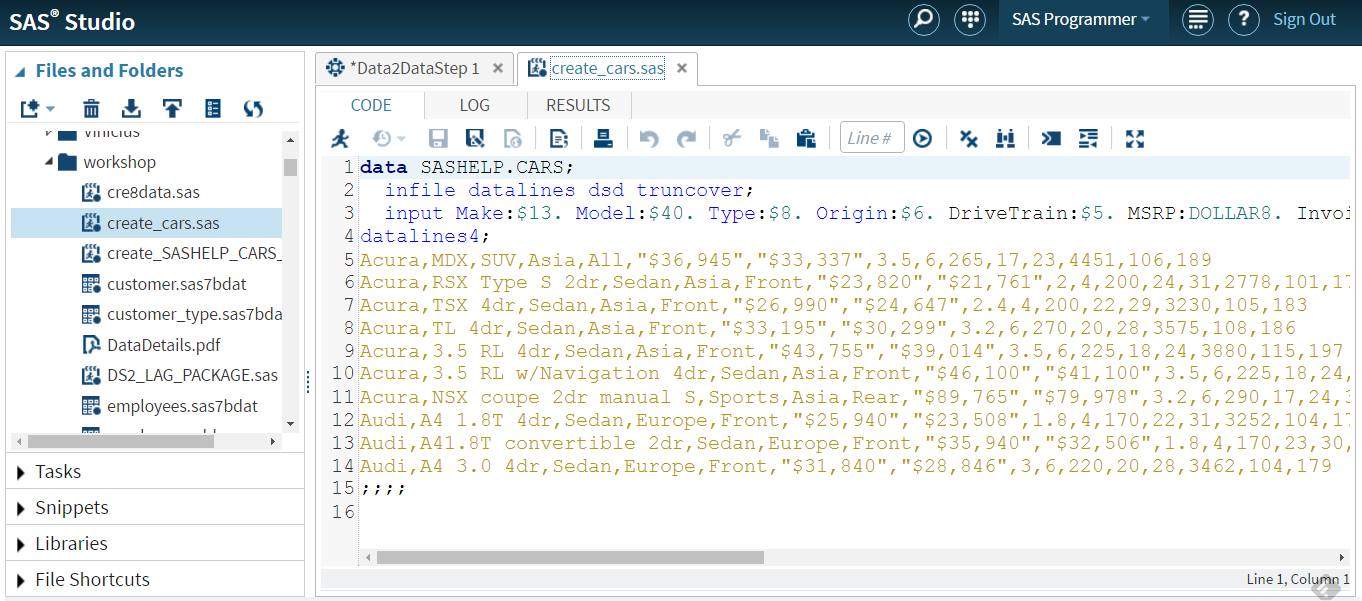

    SAS DATA step code generated by the task and Data 2 Data Step macro

    You can download a PDF of these instructions and an XML file for this sask from this link.

    That's all for this episode. Until the next time, may the SAS be with you!
    Mark

    Share

    About Author

    SAS Jedi

    Principal Technical Training Consultant

    Mark Jordan (a.k.a. SAS Jedi) grew up in northeast Brazil as the son of Baptist missionaries. He served 20 years as a US Navy submariner, pursuing his passion for programming as a hobby. Upon retiring from the Navy in 1994, he turned his hobby into a dream job and has been a SAS programmer ever since. Mark writes and teaches a broad spectrum of SAS Foundation programming classes, and is proud to announce his first book, "Mastering the SAS® DS2 Procedure: Advanced Data Wrangling Techniques". When he isn’t writing, teaching, or posting “Jedi SAS Tricks” here on the SAS Learning Post, Mark enjoys playing with his grand and great-grandchildren, hanging out at the beach and reading science fiction novels. His secret obsession is flying toys – kites, rockets, drones – and though he usually tries to convince Lori that they are for the grandkids, she isn't buying it. Mark lives in Toano, VA with his wife, Lori, and their cat, the amazing Tiger Man. To connect with Mark, check out his SAS Press Author page, follow him on Twitter @SASJedi or connect on Facebook or LinkedIn.

    Related Posts

    5 Comments

    1. Pingback: Let SAS® Studio do your clinical research ‘tasks’ - A Shot in the Arm

    2. Pingback: Let SAS® Studio do your clinical research ‘tasks’ - SAS Voices

    3. I've just started learning how to use custom tasks to try and make a user interface for non-SAS programmers. So far I really like it.

      I'm just wondering if there's any way to specify a default dataset for the DataSource. I notice you have sashelp.cars as your input data set. Presumably this is after you have selected it, rather than it be a default.

      I essentially want a role underneath so that the user can select columns from a dataset of my choosing but I can't figure out a way to do this without having them first select a dataset themselves. Is this possible?

      Hope that was clear!
      Thanks!
