The SAS® Output Delivery System provides the ability to generate output in various destination formats (for example, HTML, PDF, and Excel). One of the more recent destinations, ODS Excel, became production in the third maintenance release for SAS 9.4 (TS1M3). This destination enables you to generate native Microsoft Excel formatted files, and it provides the capability to generate worksheets that include graphics, tables, and text. If you generate spreadsheets, then the ODS Excel destination (also known as just the Excel destination) might be just the tool you're looking for to help enhance your worksheets.
This post begins by discussing the following Excel destination options that are useful for enhancing the appearance of worksheets:
- START_AT=
- FROZEN_HEADERS= and FROZEN_ROWHEADERS=
- AUTOFILTER=
- SHEET_NAME=
- ROW_REPEAT=
- EMBEDDED_TITLES=
The discussion also covers techniques for adding images to a worksheet as well as a tip for successfully navigating worksheets. Finally, the discussion offers tips for moving to the use of the Excel destination if you currently use one of the older ODS destinations (for example, the ExcelXP destination) and information about suggested hot fixes.
Using Excel Destination Options to Enhance the Appearance of Your Microsoft Excel Worksheet
There are certain ODS Excel destination options that you could conceivably add to any program that would make it easier for your users to navigate your worksheets.
These options include the following:
- START_AT= option
- FROZEN_HEADERS= and FROZEN_ROWHEADERS= options
- AUTOFILTER= option
- EMBEDDED_TITLE= option
The following example uses all of the options described above. In this example, filters are added only to the character fields.
ods excel file="c:\temp.xlsx" options(start_at="3,3" frozen_headers="5" frozen_rowheaders="3" autofilter="1-5" sheet_name="Sales Report" row_repeat="2" embedded_titles="yes"); proc print data=sashelp.orsales; title "Sales Report for the Year 1999"; run; ods excel close; |
In This Example
- The START_AT= option enables you to select the placement of the initial table or graph on the worksheet. In Microsoft Excel, by default, a table or graph begins in position A1. However, pinning the table or graph in that position does not always provide the best visual presentation.
- The FROZEN_ HEADERS= option locks the table header in your table while the FROZEN_ROWHEADERS= option locks row headers. Both of these options lock your headers and row headers so that they remain visible as you scroll through the values in the table rows and columns.
- The AUTOFILTER= option enables you to add filters to tables headers so that you can filter based on the value of a particular column.
- The SHEET_NAME= option enables you to add more meaningful text to the worksheet tab.
- The ROW_REPEAT= option makes your report more readable by repeating the rows that you specify in the option. If this report is ever printed, specifying the rows to repeat, in this case the column headers would allow for easy filtering of the data.
- The EMBEDDED_TITLE= option specifies that the title that is specified in the TITLE statement should be displayed.

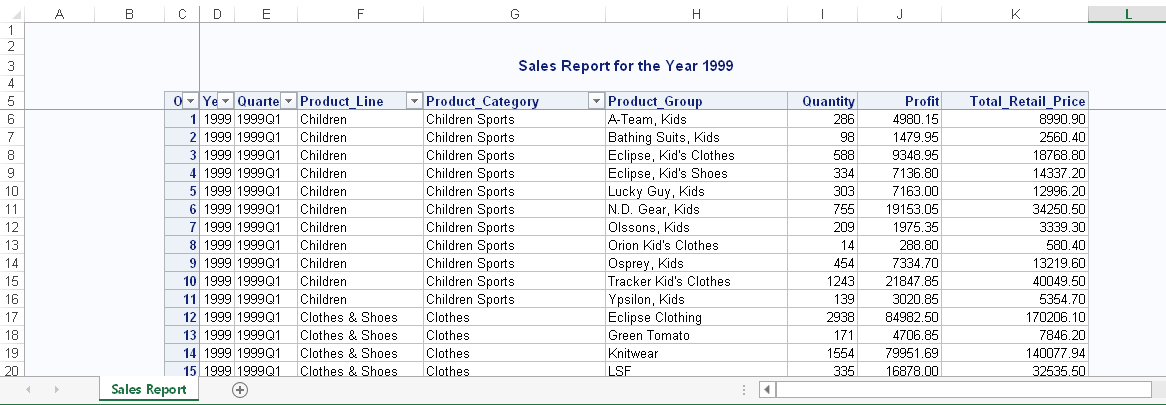

Output
Using the Excel Destination to Add and Update Images
Microsoft Excel is widely known and used for its ability to manipulate numbers. But if you want to go beyond just numbers, you can make your worksheets stand out by adding visual elements such as images and logos.
Graphic images that you generate with ODS Graphics and SAS/GRAPH® software (in SAS 9.4 TS1M3) are easy to add to a worksheet by using the Excel destination. However, the addition and placement of some images (for example, a logo) can take a bit more work. The only fully supported method for adding images other than graphics is to add an image as a background image.
The next sections discuss how you can add various types of images to your worksheet.
Adding Background Images
You can add images to the background of a worksheet by using either the TEMPLATE procedure or cascading style sheets. With PROC TEMPLATE, you add background images by using the BACKGROUNDIMAGE= attribute within the BODY style element. You also must specify the BACKGROUND=_UNDEF attribute to remove the background color. With a cascading style sheet, you use the BACKGROUND-IMAGE style property.
The following example illustrates how to add a background image using PROC TEMPLATE:
proc template; define style styles.background; parent=styles.excel; class body / background=_undef_ backgroundimage="c:\background.jpg."; end; run; ods excel file="c:\temp.xlsx" options(embedded_titles="yes" start_at="5,5" sheet_name= "Sheet1") style=styles.background; proc report data=sashelp.prdsale spanrows; title "Expense Report Year 2016"; column country product actual predict; define country / group; define product / group; rbreak after / summarize; run; ods excel close; |
In This Example
- PROC TEMPLATE uses the BACKGROUNDIMAGE= attribute within the BODY style element of the CLASS statement to include the image.
- The BACKGROUND=_UNDEF attribute removes the background color.

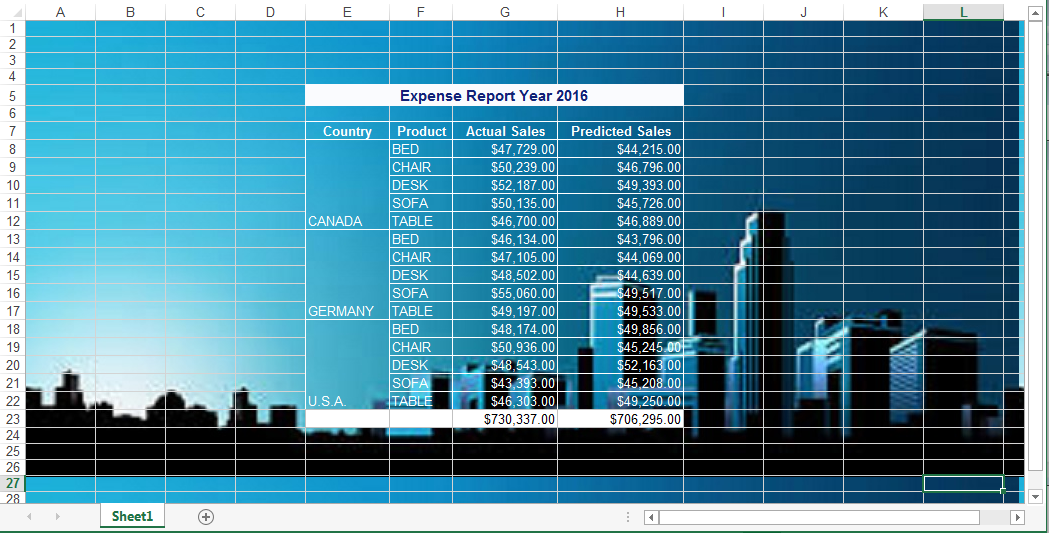

As you can see in the following output, Excel repeats (or, tiles) images that are used as a background. Excel repeats the image across the width of the worksheet.

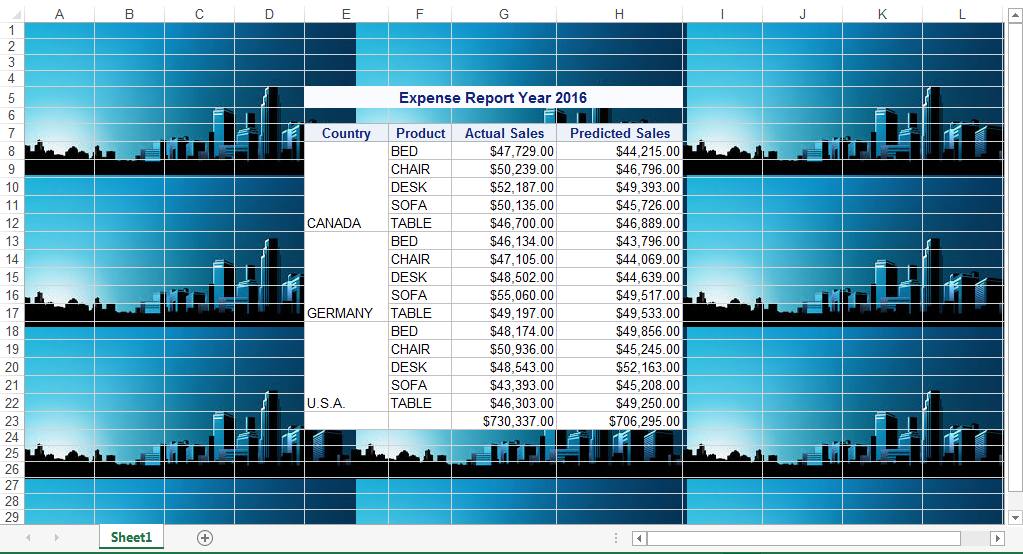

Output
But this method of tiling might not be what you want. For example, you might want your image to cover the entire worksheet. To prevent the background image from being tiled, you can insert the image into an image editor (for example, Microsoft Paint) and enlarge the background image so that it covers the full page. You can also create a canvas (that is, a page) in the image editor and then add your background image to the canvas and save it. The Excel destination does not support transparency, a property in where the background image is visible through an image. However, you can use PROC TEMPLATE to simulate transparency by removing the background colors of the various cells. When you use any of the methods described above, your output includes an image that covers the full page.
The following example uses the PROC TEMPLATE method to create the background image and remove the background colors of the cells:
proc template; define style styles.background; parent=styles.excel; class body / background=_undef_ backgroundimage="C:\background_large.jpg"; class header, rowheader, data / color=white borderwidth=5pt bordercolor=white borderstyle=solid background=_undef_; end; run; ods excel file="c:\temp.xlsx" options(embedded_titles="yes" start_at="5,5" sheet_name="Sheet1") style=styles.background; proc report data=sashelp.prdsale spanrows; title "Expense Report Year 2016"; column country product actual predict; define country / group; define product / group; rbreak after / summarize; run; ods excel close; |
In This Example
- First, the image was included in Microsoft Paint to enlarge it.
- Then, PROC TEMPLATE uses the BACKGROUNDIMAGE= attribute within the BODY style element of the CLASS statement to include the enlarged image.
Output
Adding External Images to the Worksheet
Currently, the Excel destination does not support adding external images on a per-cell basis.
However, you can add external images (for example, a company logo) using either of the following methods:
You can accomplish this task in the following ways:
- manually add an image using an image editor
- use the GSLIDE procedure with the GOPTIONS statement
- use the %ENHANCE macro.
Adding an Image with an Image Editor

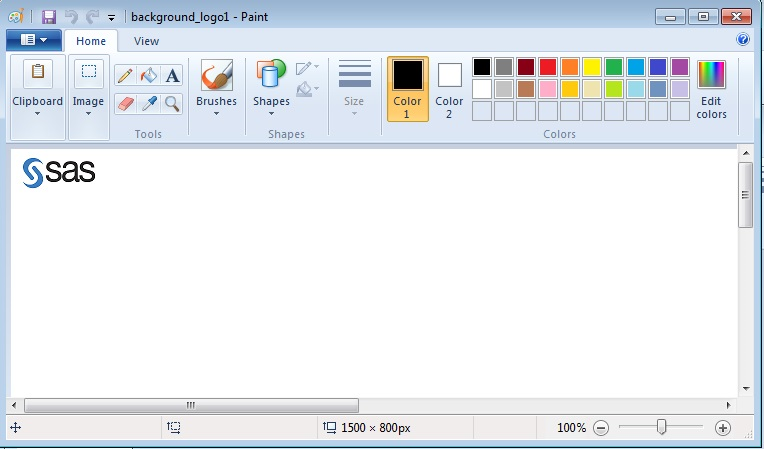

Using an image editor such as Microsoft Paint, you can place an image (for example, a logo) wherever you want it on the worksheet. In the following display, the image is brought into the Paint application and moved to the top left of a canvas.
After you save this image, you can include it in an Excel worksheet as a background image using the BACKGROUNDIMAGE= attribute, which displays the logo without repeating it.
proc template; define style styles.background_kogo; parent=styles.excel; class body / background=_undef_ backgroundimage="c:\temp\background_logo"; end; run; ods excel file="c:\temp.xlsx" style=styles.background_logo; proc print data=sashelp.class; run; ods excel close; |

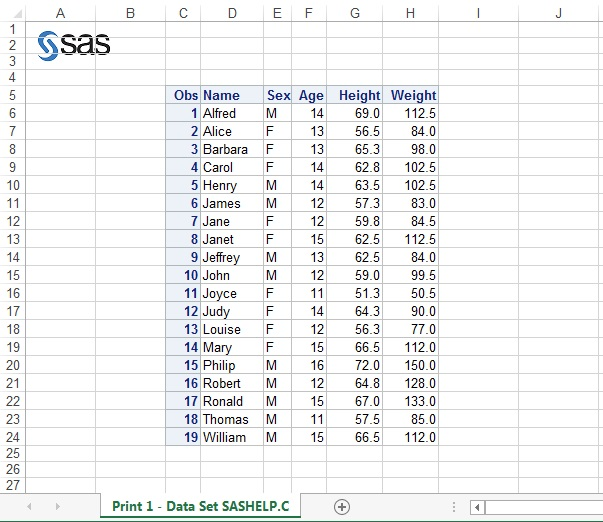

Output
Adding an Image Using the GOPTIONS Statement with the GSLIDE Procedure
You can also use the GOPTIONS statement and PROC GSLIDE procedure with the Excel destination to add a logo on the worksheet. This method requires SAS/GRAPH software to be licensed and installed.
To add a background image to the graph display area of PROC GSLIDE output, specify the IBACK= option in the GOPTIONS statement, as shown in the following example:
ods excel file="c:\temp.xlsx" options(sheet_interval="none"); goptions iback="c:\sas.png" imagestyle=fit vsize=1in hsize=2in; proc gslide; run; proc report data=sashelp.class; run; ods excel close; |
In This Example
- The GOPTIONS statement with the IBACK= option adds a background image to the graph display area.
- The IMAGESTYLE=FIT option keeps the image from repeating (tiling).
- The VSIZE= and HSIZE= options modify the size of the image.
- The Excel destination suboption SHEET_INTERVAL="NONE" specifies that the image and report output are to be added to the same worksheet.

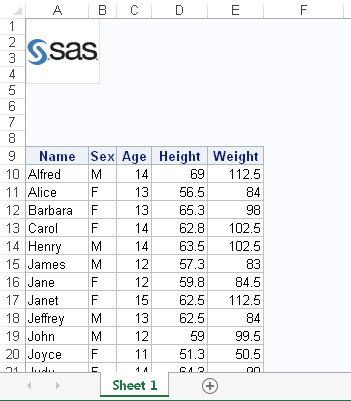

Output
Adding an Image Using the %EXCEL_ENHANCE Macro
The %EXCEL_ENHANCE is a downloadable macro that enables you to place images on a worksheet in an exact location by using a macro parameter. The macro creates VBScript code that inserts your image in a specified location on the worksheet during post-processing.
The following example uses the %EXCEL_ENHANCE macro to add an image to a workbook.
Note: This method is limited to Microsoft Windows operating environments.
%include "C:\excel_macro.sas"; %excel_enhance(open_workbook=c:\temp.xlsx, insert_image=%str(c:\SAS.png#sheet1!a1, c:\canada.jpg#sheet1!b5, c:\germany.jpg#sheet1!b10, c:\usa.jpg#sheet1!b15), create_workbook=c:\temp_update.xlsx, file_format=xlsx); |
In This Example
- The %INCLUDE statement includes the %EXCEL_ENHANCE macro into your program.
- The %EXCEL_ENHANCE macro uses the INSERT_IMAGE= parameter to insert an image into the worksheet at a specified location. You can also specify multiple images, but they must be separated by commas.
The INSERT_IMAGE= option uses the following syntax in the %STR macro function to pass the image.
image-location #sheet-name ! sheet-position |
- The OPEN_WORKBOOK= parameter specifies the location of the workbook in which you want to add an image.
- The CREATE_WORKBOOK= parameter creates a new workbook that includes your changes.
- The FILE_FORMAT= parameter enables you to specify the extension or format for the files that are created.

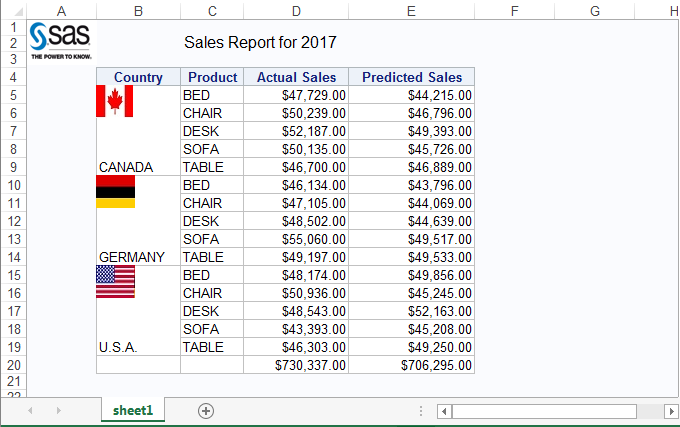

Output
Navigating a Microsoft Excel Workbook
When you generate an Excel workbook with the Excel destination, the best way to navigate the workbook is by creating a table of contents. You can create a table of contents by using the Excel destination's CONTENTS= option. You can also use the PROC ODSLABEL statement to modify the table-of-contents text that is generated by the procedure. In the following example, that text (The Print Procedure) is generated by the PRINT procedure.
ods excel file="c:\temp.xls" options(embedded_titles="yes" contents="yes"); ods proclabel= "Detail Report of Males"; proc print data=sashelp.class(where=(sex="M")); title link="#'The Table of Contents'!a1" "Return to TOC"; run; ods proclabel= "Detail Report of Females"; proc print data=sashelp.class(where=(sex="F")); title link="#'The Table of Contents!a1'" "Return to TOC"; run; ods excel close; |
In This Example
- The CONTENTS= option is included in the ODS EXCEL statement to create a table of contents. You can also use the INDEX= suboption (not shown in the example code) to generate an abbreviated output. These options create the first worksheet within a workbook and include an entry to each element that is generated in the workbook.
- The ODS PROCLABEL statement is used to modify the table-of-contents text that is generated by the procedure name. In this example, the text The Print Procedure (generated by the two PROC PRINT steps) is modified to Detail Report of Males and Detail Report of Females, respectively.
- You can also modify the secondary link by using the CONTENTS= option in the procedure statements for the PRINT, REPORT, and TABULATE procedures.
- The LINK= option in the TITLE statement adds a link that returns you to Table of Contents navigation page. You can also use this option in a FOOTNOTE statement. The argument that you specify for the LINK= option is the sheet name for the Table of Contents page. You can also add a link by using the Microsoft Excel hyperlink function in the ODS TEXT= statement using the Excel Hyperlink function.
Output

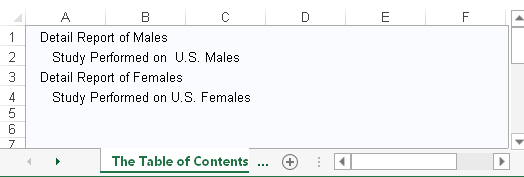

The output below shows the Table of Contents navigation page.

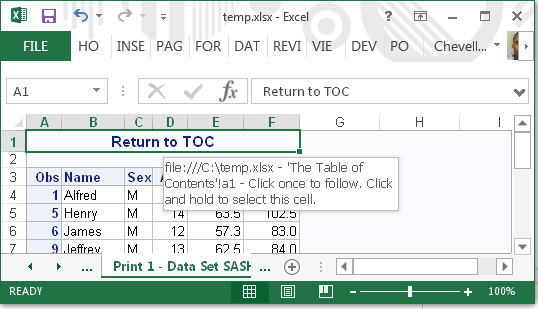

The next output shows a page in the report that contains the Return to TOC link.
Using the ODS Excel Destination instead of Older Destinations
Currently, you might be using older destinations (for example, the MSOffice2K or the ExcelXP tagsets). If you decide to move to the ODS Excel destination, you'll notice differences related to style, options, and wrapping between it and other destinations.
- One difference is that the Excel destination uses the Excel style, which looks similar to the HTMLBlue style. Other destinations use different styles (for example, the ExcelXP tagset uses styles.default.
- Certain options that are valid with the ExcelXP tagset are not valid in the Excel destination.
- Another difference that you'll notice right away is how the text is wrapped by the Excel destination. By default, the Excel destination uses an algorithm to try to wrap columns in order to prevent overly wide columns. When text wraps, a hard return is added automatically to the cell (similar to when you either press Alt+ Enter from the keyboard under Windows or you submit a carriage-return line feed [CRLF] character). You can prevent the Excel destination from adding this hard return in wrapping by specifying a width value that is large enough so that text does not wrap. You can also use the Excel destination's new FLOW= suboption, which is available in the fourth maintenance release for SAS 9.4 (TS1M4). This option contains the parameters TABLES, ROWHEADERS, DATA, TEXT, and a range (for example, A1:E20). When you specify the parameter TABLES, that automatically includes the HEADERS, ROWHEADERS, and DATA parameters.
The following example demonstrates how to prevent the Excel destination from automatically generating a hard return for wrapped text in SAS 9.4 TS1M4.
data one; var1="Product A in Sports"; var2="Product B in Casual"; label var1="Product Group for All Brands in Region 1"; label var2="Product Group for All Brands in Region 2"; run; ods excel file="c:\temp.xlsx" options(flow="tables"); proc print data=one label; run; ods excel close; |
In This Example
- The first table shown in the output below is created by default. As a result, the header wraps in the formula bar where the CRLF character is added.
- The second table in the output is generated with the FLOW="TABLES" suboption (in the ODS EXCEL statement) to prevent the destination from adding the CRLF character to table headers, row headers, and data cells. When you add this option, Microsoft Excel text wrapping is turned on, by default.
Output

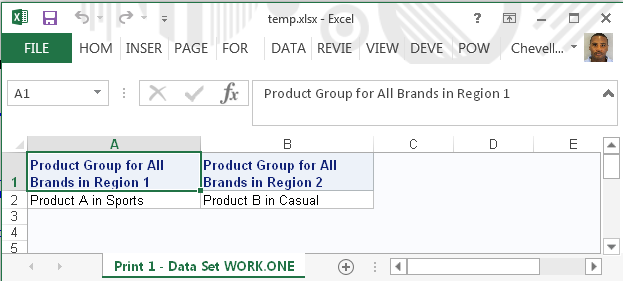

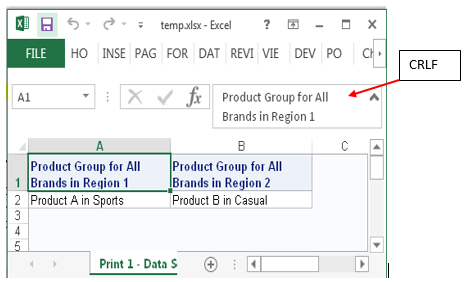

Table that is created by default:
Table that is created by including the FLOW="TABLES" suboption in the ODS EXCEL statement:
Hot Fixes for the Excel Destination
If you run SAS 9.4 TS1M3 and you use the ODS Excel destination, see the following SAS Notes for pertinent hot fixes that you should apply:
- SAS 56878, "The ODS destination for Excel generates grouped worksheets when multiple sheets are produced"
- SAS Note 57088, "The error 'applied buffer too small for requested data' might be generated when you use the ODS destination for Excel"
Resources
Bessler, LeRoy. 2015. "The New SAS ODS Excel Destination: A User Review and Demonstration."
Proceedings of the Wisconsin, Illinois SAS Users Group. Milwaukee, WI.
Huff, Gina. 2016. "An 'Excel'lent Journey: Exploring the New ODS EXCEL Statement."
Proceedings of the SAS Global Forum 2016 Conference. Cary, NC: SAS Institute Inc.
Parker, Chevell. 2016. "A Ringside Seat: The ODS Excel Destination versus the ODS ExcelXP Tagset."
Proceedings of the SAS Global Forum 2016 Conference. Cary, NC: SAS Institute Inc.
